Quasar M8100FM

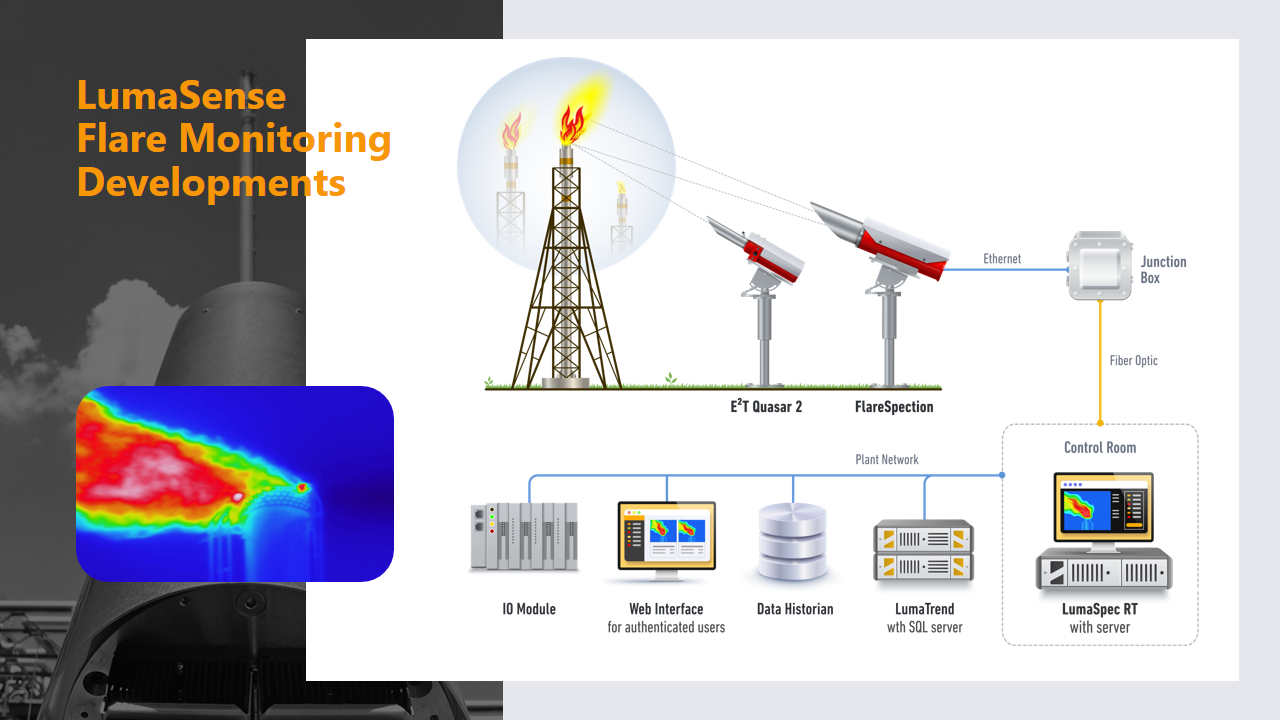

The QUASAR Model M8100FM-EXP Flare Stack Flare Monitor provides continuous monitoring of flared gas from remote locations up to ¼ mile (400 m) away in nearly any climate condition. This makes it ideal for confirming compliance with government-set flaring time limits.

The QUASAR utilizes multi-wavelength infrared detection and electronic circuitry to automatically compensate for signal variation due to rain, snow or fog. Observed flaring is reported via a 4 and 20 MA signal. The QUASAR can be mounted on a control center roof and sighted to monitor flaring on distant flare stacks. It is available with a sturdy mounting system designed to resist movement in high winds and provide vernier sighting capabilities for easy target acquisition at long sighting distances.

All electrical and optical components of the QUASAR Model M8100FM-EXP are housed in a single CSA AND CENELEC APPROVED enclosure with a hazardous location classification of Class 1, Division 1, Groups C and D; Class 1, Division 2, Groups A through D; and EExd IIB T4. A single interchangeable modular package mounted inside the explosion-proof enclosure houses all electronic and optical components allowing easy removal and replacement without disturbing any external connections.

The combination of modular features into a single remotely locatable system makes the QUASAR easy to install, maintain and integrate with other systems, and makes it one of the most economical flare stack flare monitors on the market.

IR Detectors, Cores and OEM Cameras

LumaSense’s ITC brand of VOx IR components offers a variety of products, product families, wavelengths and resolutions to support all of your applications, performance and cost requirements.

As a global supplier of uncooled VOx components we work with our customers to develop custom solutions for common and uncommon applications.

In fact, all products are designed and developed for true interchangeability. When you integrate one product, you have the option to upgrade to any other product in the line.

Join the growing family of customers that differentiate with industry leading image quality based on detectors with 20-30mk NEdT performance.

The modular design of the Pearl OEM Camera provides a premier thermal imaging platform for your applications and products. The Pearl hardware was developed with the ability to operate the entire detector product family offered by ITC within the same architecture. The design can be easily configured to operate any of the ITC detectors through simple firmware/register settings.

25µm VOx Infrared Detector

The 25 µm product family is provided in 640×480 and 320×240 resolution. The detectors consistently provide 25-35mk NEdT performance. Robust imaging/thermography platforms that have proven market performance and quality.

37.5 µm VOx Infrared Detector

The 37.5 µm product family is provided in 320×240 and 160×120 resolution. The detectors provide a high performance (typical 20-30mK NEdT) cost effective thermal solution.

Pearl Camera Core

The Pearl Thermal Imager is a low cost hardware and software architecture designed to operate all LumaSense’s IR detectors. The robust no nonsense module can be customized to meet your application specific needs.
